FR50 brise soleil

SPECIFICATIONS

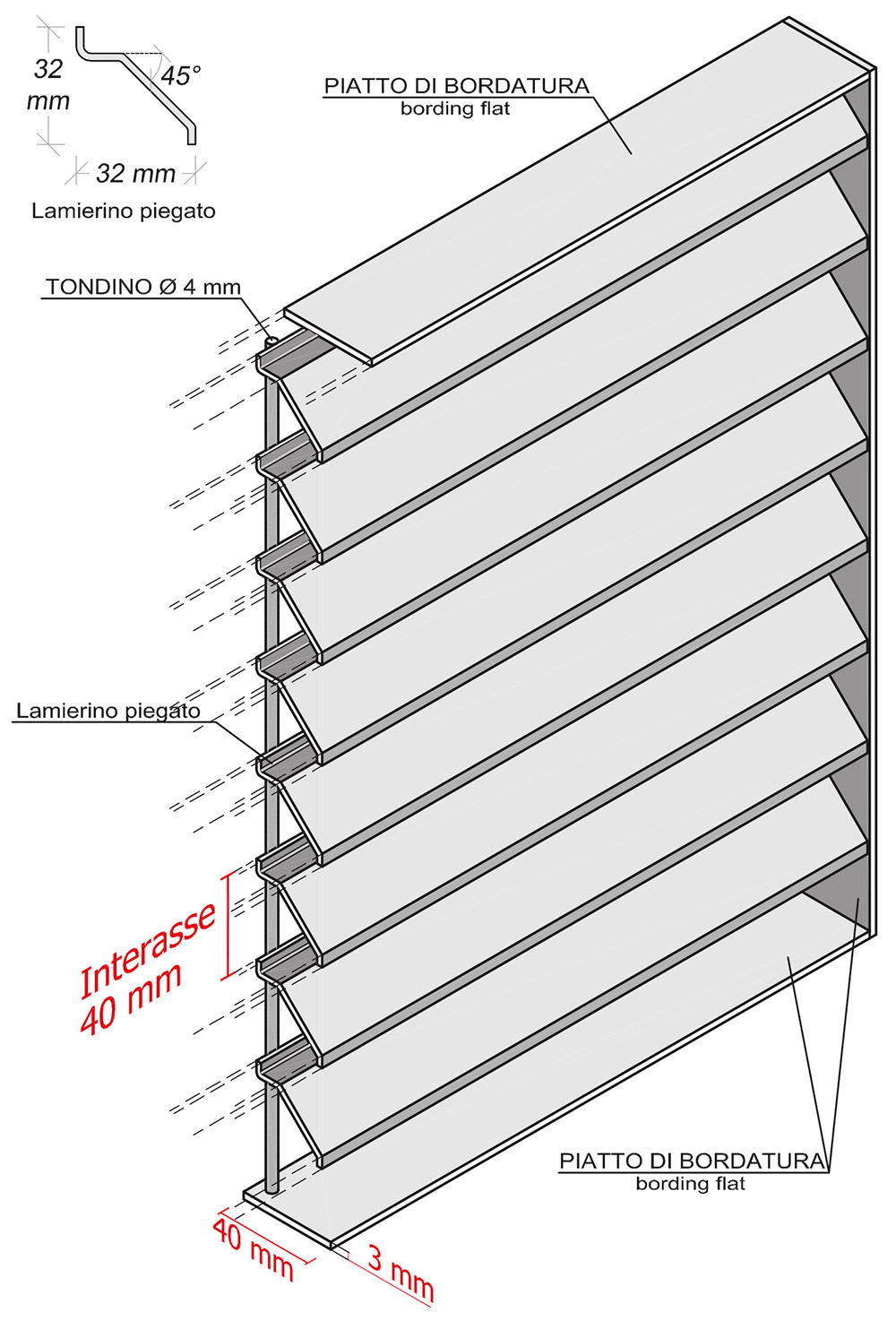

  • FR50 brise soleil made of special 45° inclined profile, placed horizontally, at a distance of 40mm, 4mm diameter reinforcing  rods placed vertically at variable distance, flat edged bar.
  • Material: S235 JR steel.
  • Hot-dip galvanization in accordance with UNI 5744/66 – ISO 1461 – DIN 50976. Polyester Powder Coating.
  • RAL colour epoxy paint with D.L.L.

Applications:

  • This product is suitable for different applications, including: fences, vertical curtain walls, façade shielding, balustrades, shielding for gates and much more.
  • Edged and galvanized weight: 21.89 kg/m2.
